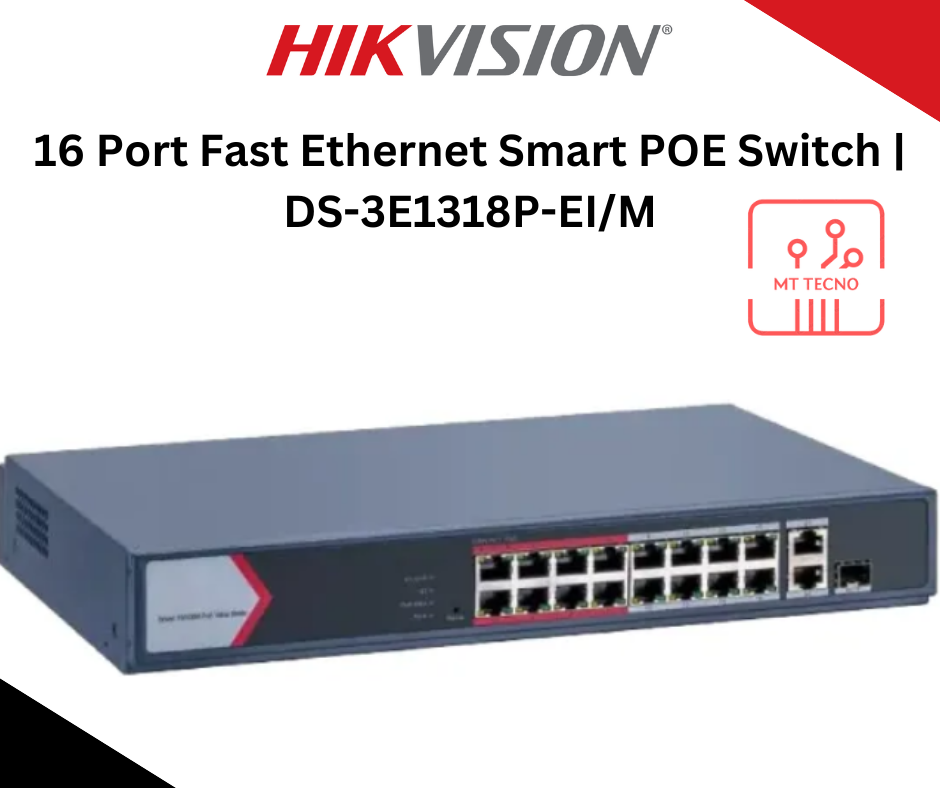

Hikvision 16 Port Fast Ethernet Smart POE Switch | DS-3E1318P-EI/M

DescriptionDS-3E1318P-EI/M 16 Port Fast Ethernet Smart POE Switch16 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port.IEEE 802.3at/af standard for PoE ports.Network topology management, alarm push, network health monitor.6 KV surge protection for PoE ports.AF/AT camera can reach up to 300 m in extend mode.SpecificationPorts16 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 portStandardIEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3zHigh Priority PortsPorts 1 to 8Forwarding ModeStore-and-forward switchingWorking ModeStandard mode (default),Extend modeMAC Address Table16 KSwitching Capacity7.2 GbpsInternal Cache4 MbitsPoE Power PinEnd-span: 1/2(-), 3/6( ) Mid-span: 4/5( ), 7/8(-) 8-pin power: 1/2(-), 3/6( ), 4/5( ), 7/8(-)Device MaintenanceSupport remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.ShellMetal materialNet Weight1.8 kg (4.0 lb)Dimensions (W × H × D)335.00 mm × 44.50 mm × 226.00 mm (13.19” × 1.75” × 8.90”)Operating Temperature0 °C to 45 °C (32 °F to 113 °F)Operating Humidity5% to 95% (no condensation)Power Supply100-240 VAC, 50/60 Hz, Max. 2.5 AMax. Power Consumption150 WSafetyUL (UL 60950-1); CB (IEC 60950-1:2005 Am 1:2009 Am 2:2013); CE-LVD (EN 60950-1:2005 Am 1:2009 Am 2:2013)
