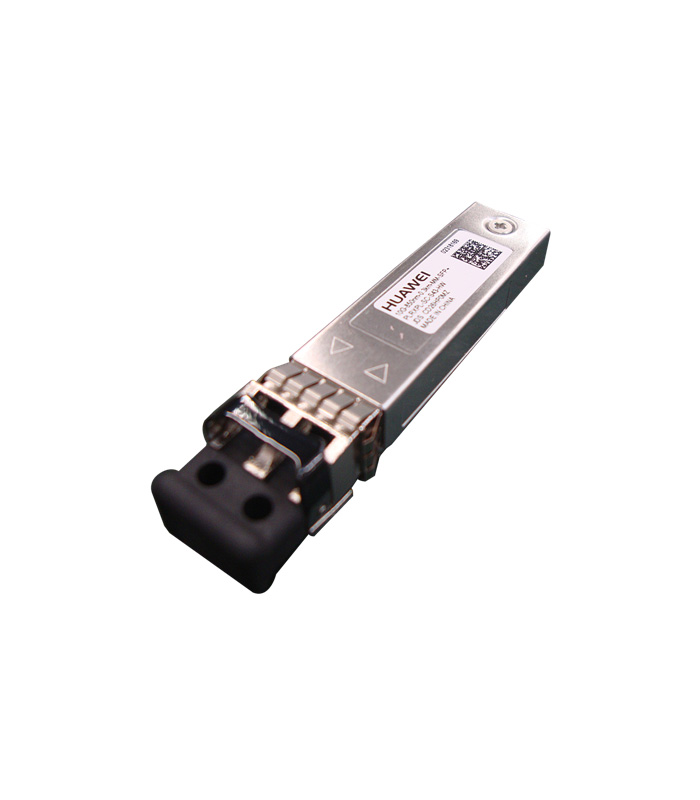

Huawei SFP-10G-USR Multi-mode Module

SFP-10G-USR specificationsItemValueBasic InformationModule nameSFP-10G-USRPart Number02310MNWModelSFP-10G-USRForm factorSFP Application standard10GBASE-USR (non-standard)Connector typeLCOptical fiber typeMMFWorking case temperature [°C(°F)]0°C to 70°C (32°F to 158°F)Digital diagnostic monitoring (DDM)SupportedTransmission rate [bit/s]10 Gbit/sTarget transmission distance [km]Multimode fiber (OM3): 0.1 kmTransmitter Optical CharacteristicsCenter wavelength [nm]850 nmMaximum Tx optical power [dBm]-1.0 dBmMinimum Tx optical power [dBm]-7.3 dBmMinimum extinction ratio [dB]3.0 dBReceiver Optical CharacteristicsRx sensitivity [dBm]-10.7 dBmOverload power [dBm]0.5 dBm
